flutter

---

Motivation

---

Development

Native

Eine App je für Android/iOs

Cross Platform

Eine App, welche irgendwie auf beiden Systemen läuft

Player:

• React Native
• Ionic
• Flutter

---

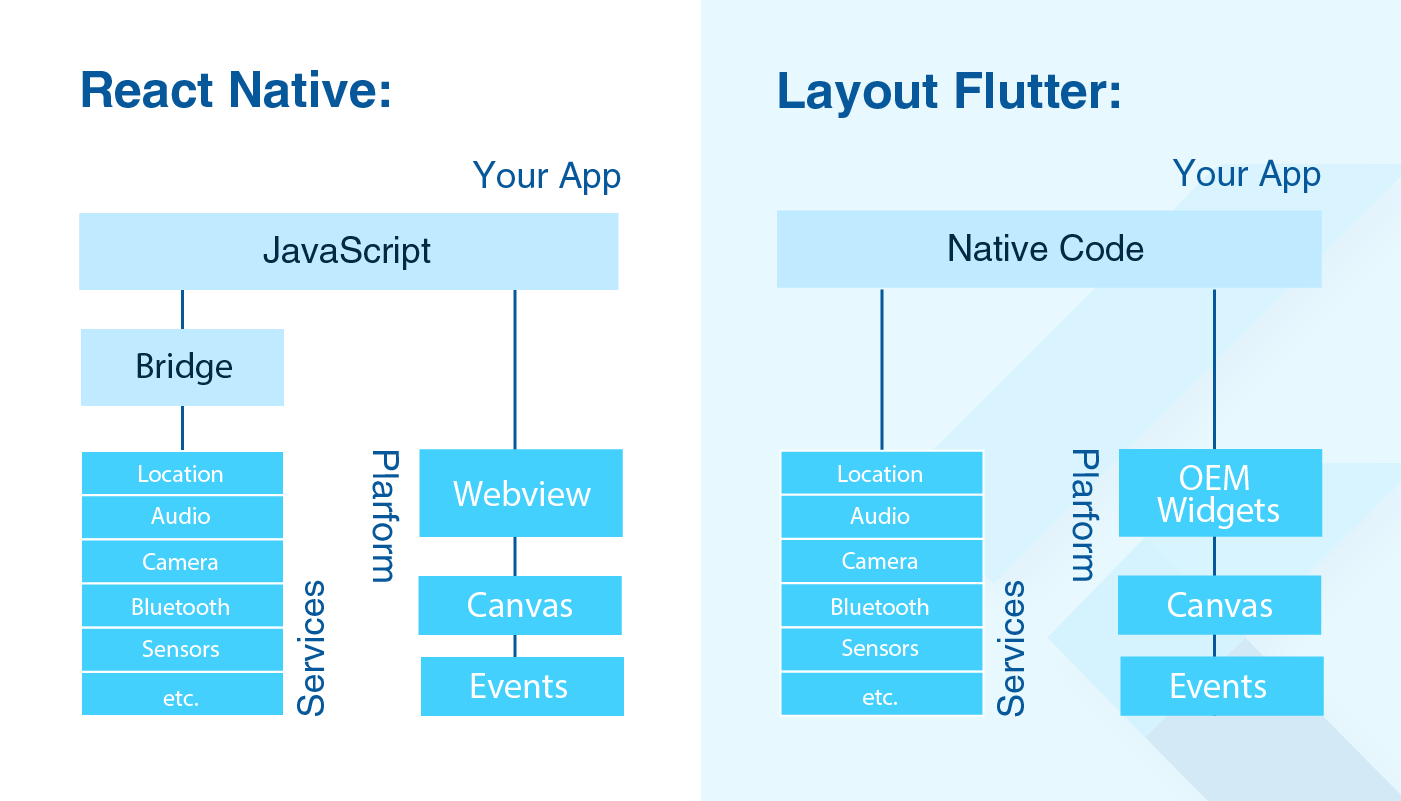

(React) Native vs Flutter

---

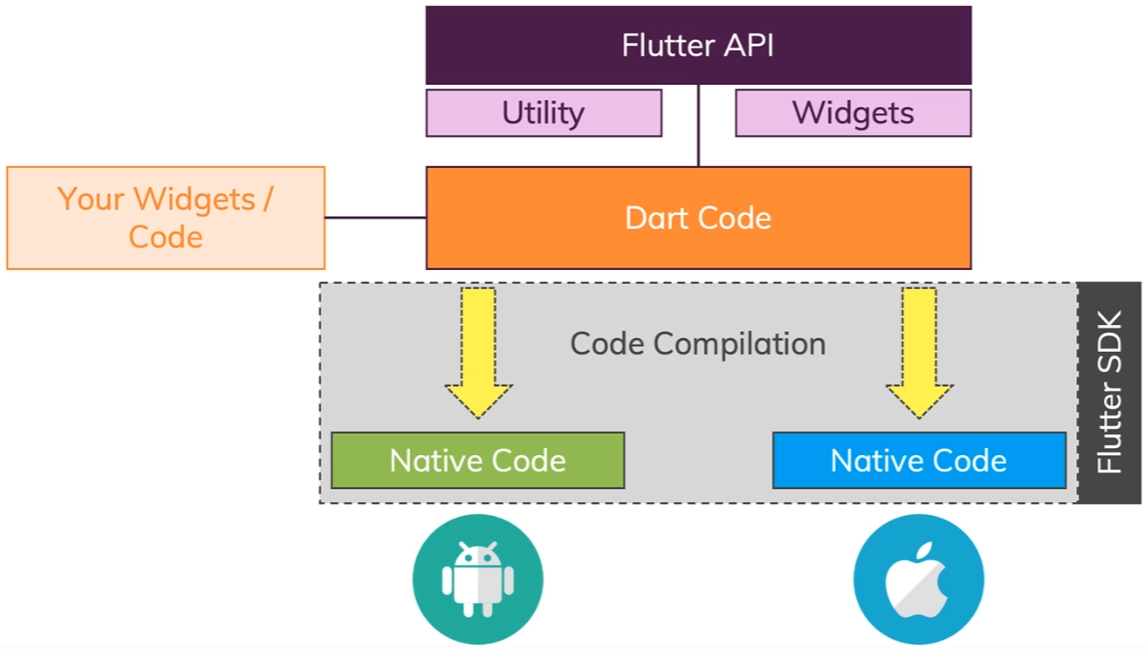

Architektur

---

Setup

1. Flutter [Get the Flutter SDK, Windows setup[


               PS C:\> flutter doctor
               Doctor summary (to see all details, run ...):
               [√] Flutter (Channel stable, 2.5.3, on Microsoft ...)
               [√] Android toolchain - develop for Android ...
               [√] Chrome - develop for the web
               [√] Android Studio (version 2020.3)
               [√] IntelliJ IDEA Ultimate Edition (version 2021.3)
               [√] Connected device (2 available)


2. Android Studio Plugins Dart/Flutter

---

Hello World

import 'package:flutter/material.dart';

void main() => runApp(MyApp());

class HelloWorldApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    // abstract
    return MaterialApp(
      home: Text('Hello World'), // , -> Autoformatter
    );
  }
}

---

Android

• Einstellungen ->
  (Telefoninfo -> Softwareinformation -> )
  Buildnummer -> 7 mal tappen

• Developermodus aktiviert ✔️

• USB-Debugging ✔️

---

Flutter Inspector

---

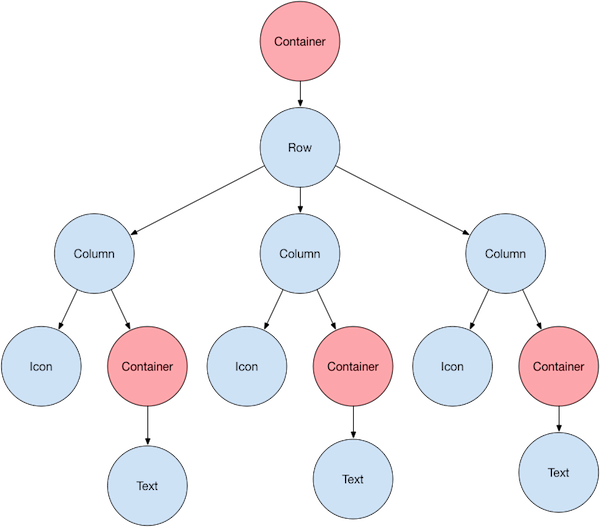

Widget Tree

---

Widget Tree

---

Widget

• immutable description of UI
• inflated zu Elements
• build() updated oder deleted und inflated den Subtree neu

---

Scaffold

---

Container

---

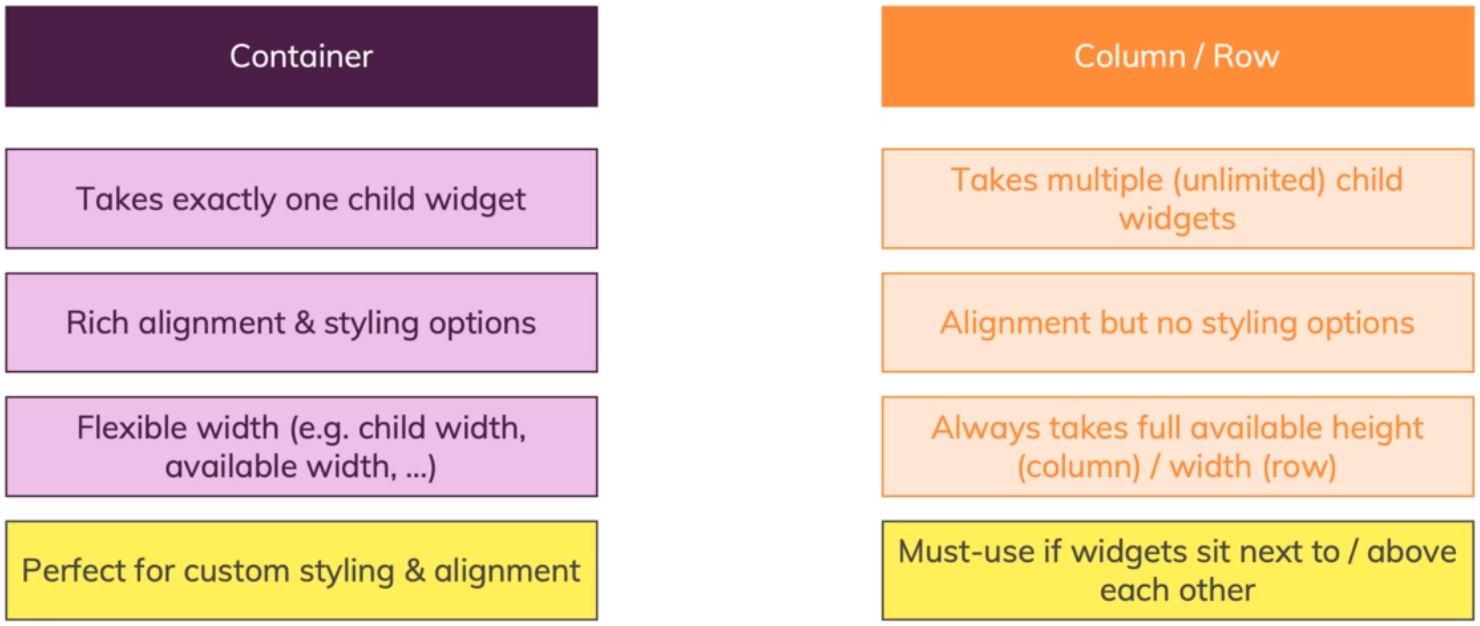

Container/Column/Row

---

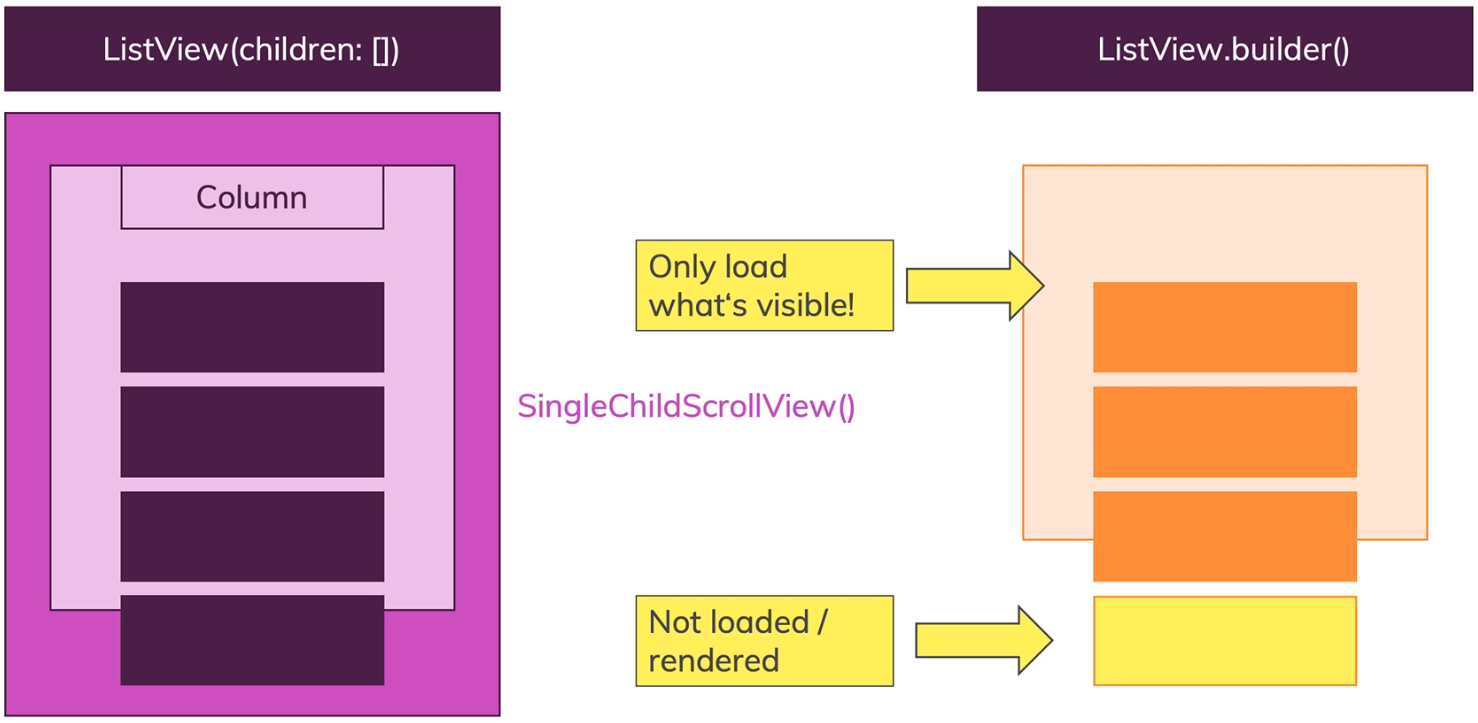

ListView

Builder ⟹ Performance

---

Expanded

---

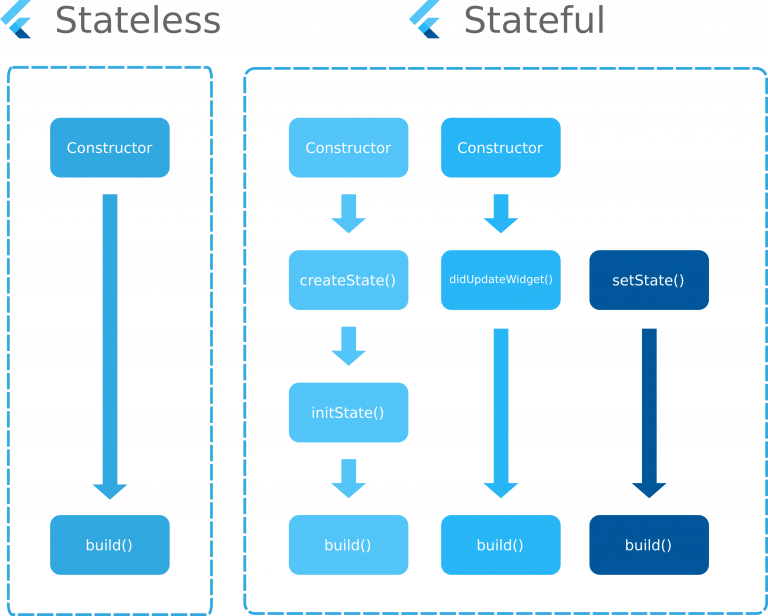

StatefulWidget

class Counter extends StatefulWidget {
  @override
  _CounterState createState() => _CounterState();
}

class _CounterState extends State<Counter> {
  int _count = 0;

  @override
Widget build(BuildContext context) {
  return Row(
    children: [
      ElevatedButton(
        onPressed: _updateCount,
        child: Text('$_count'),
      ),
    ],
  );
}

  void _updateCount() {
  setState(() => _count++);
}

---

---

UI updated nicht

class Changer extends StatefulWidget {
  @override
  _ChangerState createState() => _ChangerState();
}

class _ChangerState extends State<Changer> {
  String _text = 'Lorem';

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        ElevatedButton(
          onPressed: () => _text = 'ipsum',
          child: Text('$_text'),
        ),
      ],
    );
  }

kein Update ⟹ setState

---

widget

class Changer extends StatefulWidget {
  final Object data;

  Changer(this.data);

  @override
  _ChangerState createState() => _ChangerState();
}

class _ChangerState extends State<Changer> {
  final myOwnData = widget.data;
  final myContext = context;

  ...
}

• widget.x greift auf Variable x im Widget zu
• context liefert den Context des Widgets

---

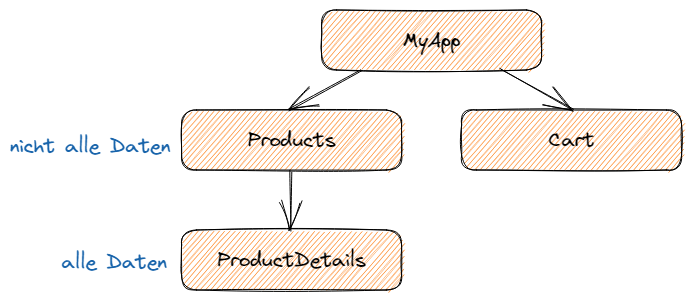

State Management

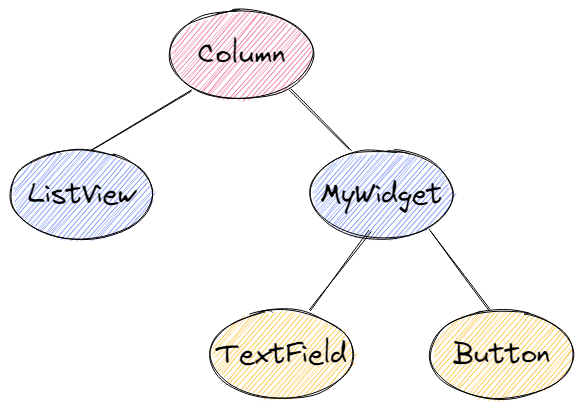

Wohin mit dem State?

So tief wie möglich, so hoch wie nötig

---

TextField fügt zum ListView hinzu

---

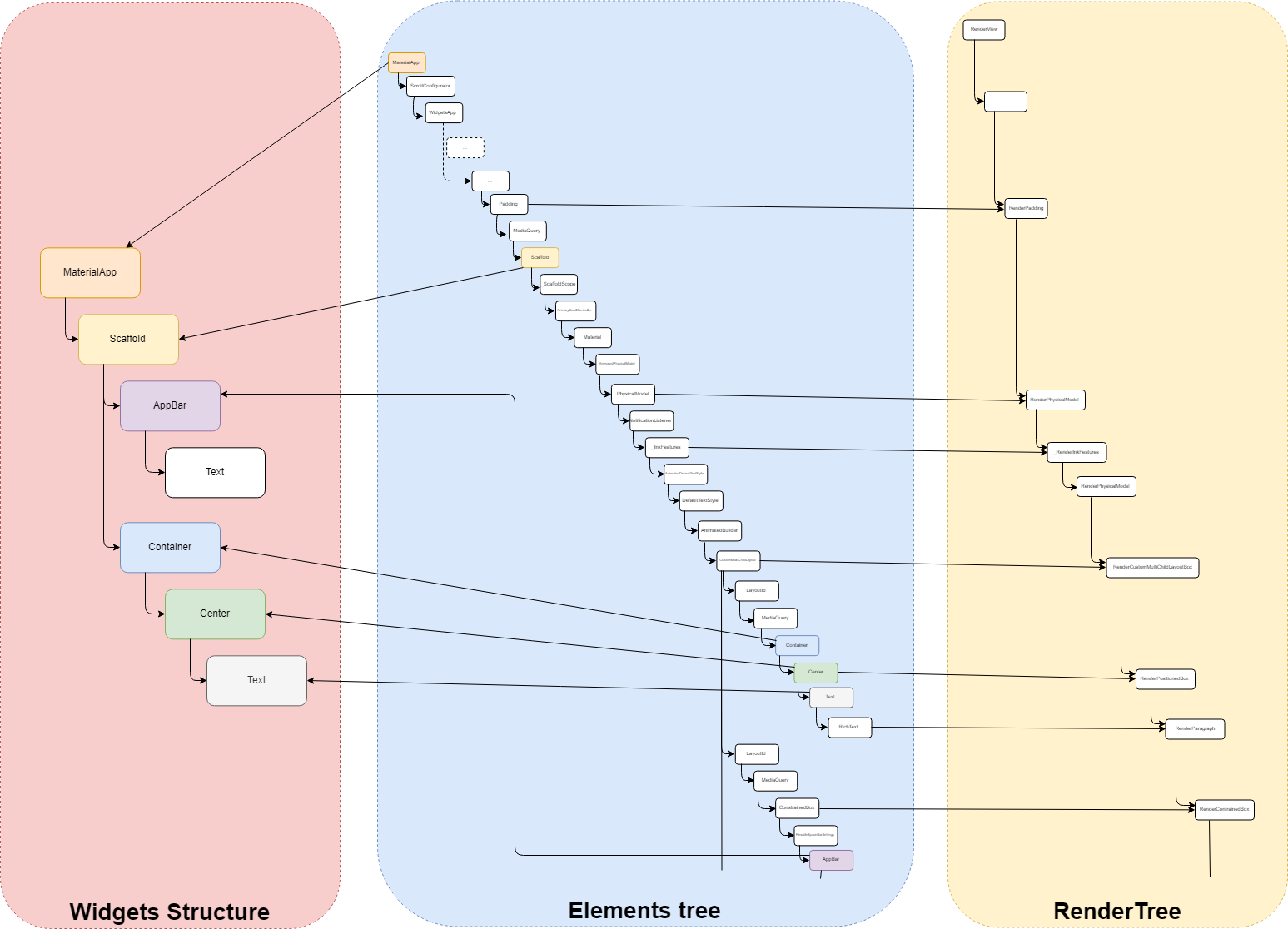

Widget Tree - Element Tree - Render Tree

---

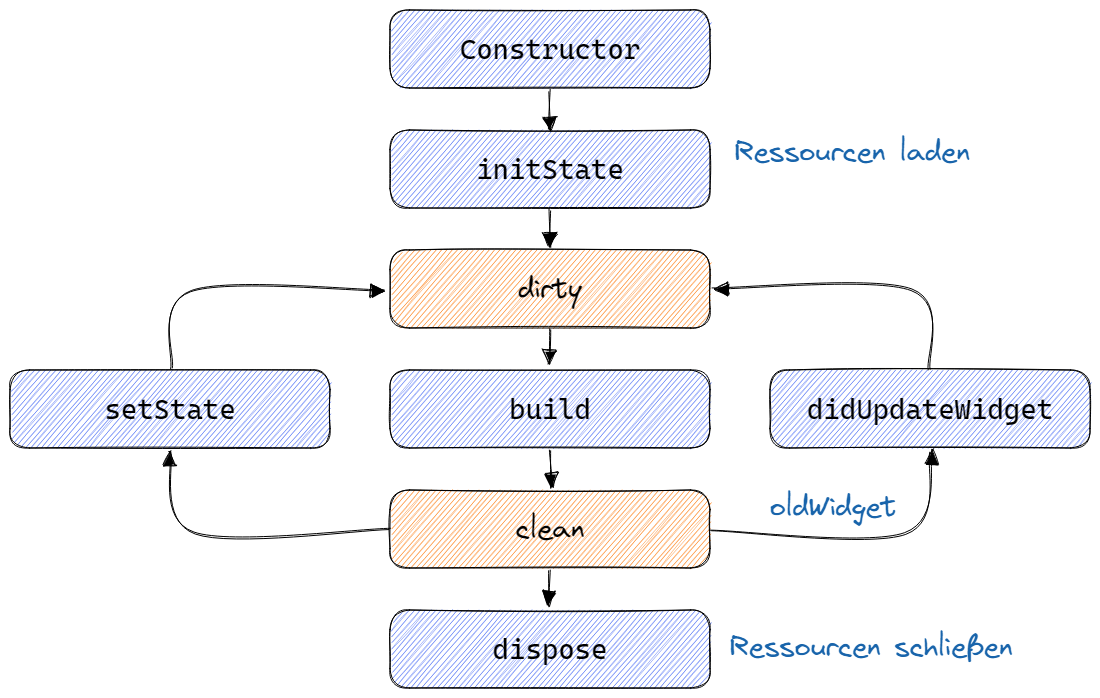

Widget Lifecycle

---

? :

Container(
  child: input.isEmpty
      ? Image.asset('assets/images/error.png')
      : Text('Yay'),
);

Flex(
  children: [
    if(isPortrait) Widget(...)

---

Theme

Text(
  'lorem ipsum',
  style: const TextStyle(
    color: Colors.blue,
    fontWeight: FontWeight.bold,
    fontSize: 16,
  ),
)

don't repeat yourself!

MaterialApp(
  theme: ThemeData(
    fontFamily: 'Quicksand',
    colorScheme: ColorScheme.fromSwatch(
      primarySwatch: Colors.blue,
      accentColor: Colors.amber,
    ),
  )
);

color: Theme.of(context).colorScheme.primary

---

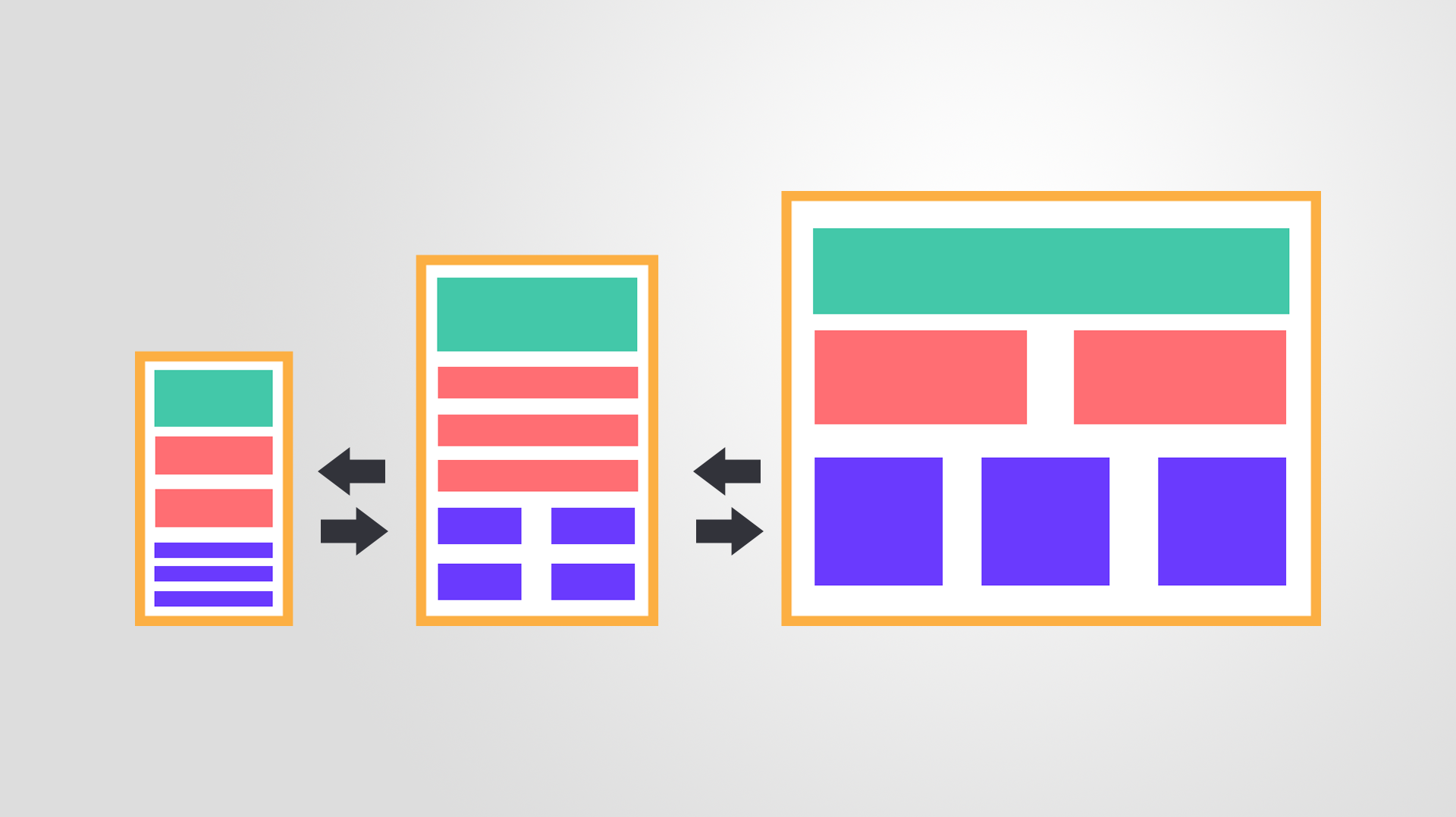

Responsiveness

---

MediaQuery.of(context).
size // width/height
    .textScaleFactor
    .orientation // portrait/landscape
    .viewInsets // onscreen-Keyboard etc.

👍 Speichern für mehr Performance👍

@override
Widget build(BuildContext context) {
  final mediaQuery = MediaQuery.of(context);

---

Verwendung

...children: [
  if (mediaQuery.orientation == Orientation.landscape) MyWidget(),

  mediaQuery.size.width > 400
      ? Row(...)
      :Widget,

  Text(
    'text',
    style: TextStyle(
      fontWeight: FontWeight.bold,
      fontSize: 20 * mediaQuery.textScaleFactor,
      color: Theme.of(context).colorScheme.primary,
    ),
  ),
],

---

LayoutBuilder

---

Adaptiveness

---

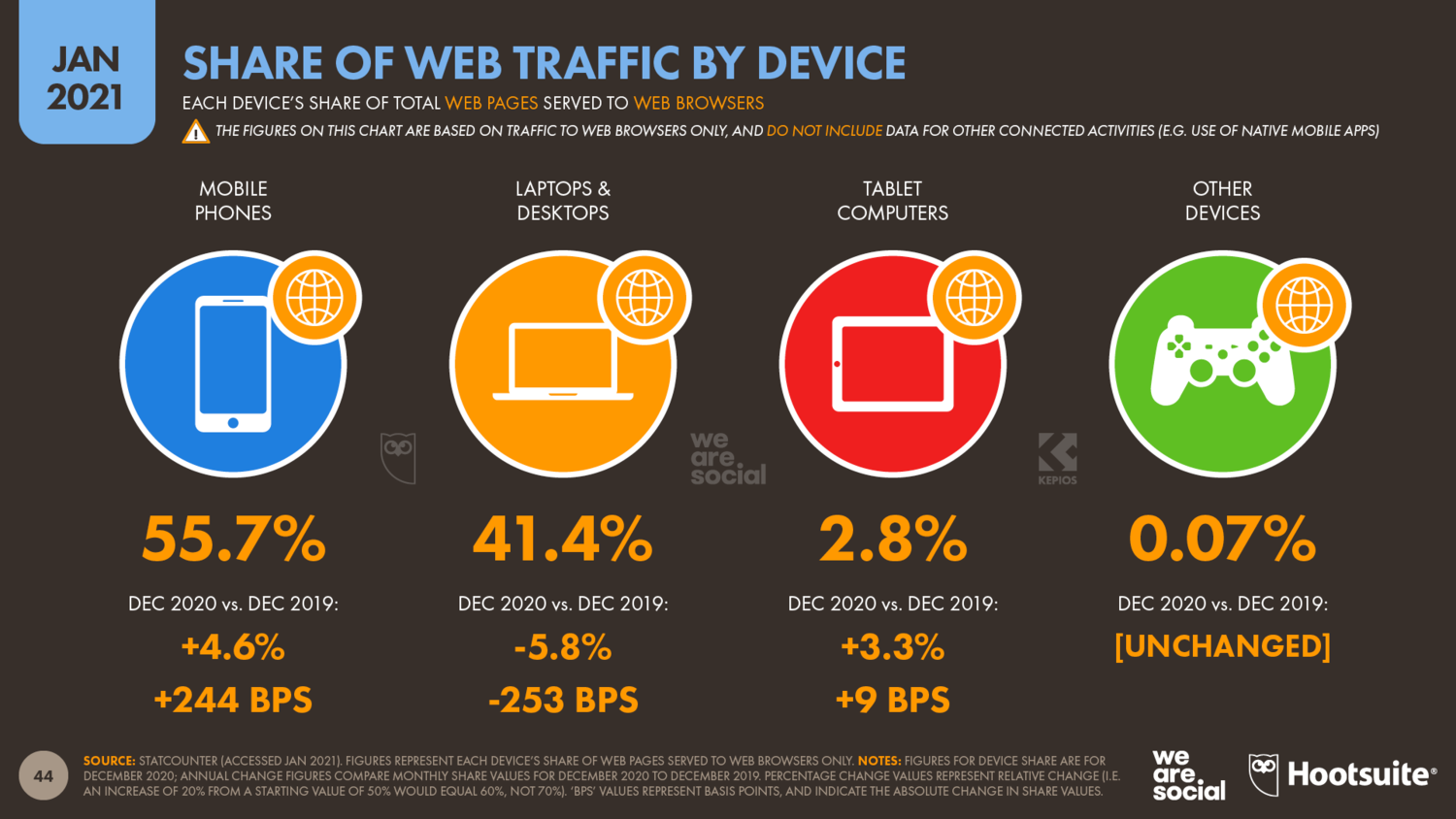

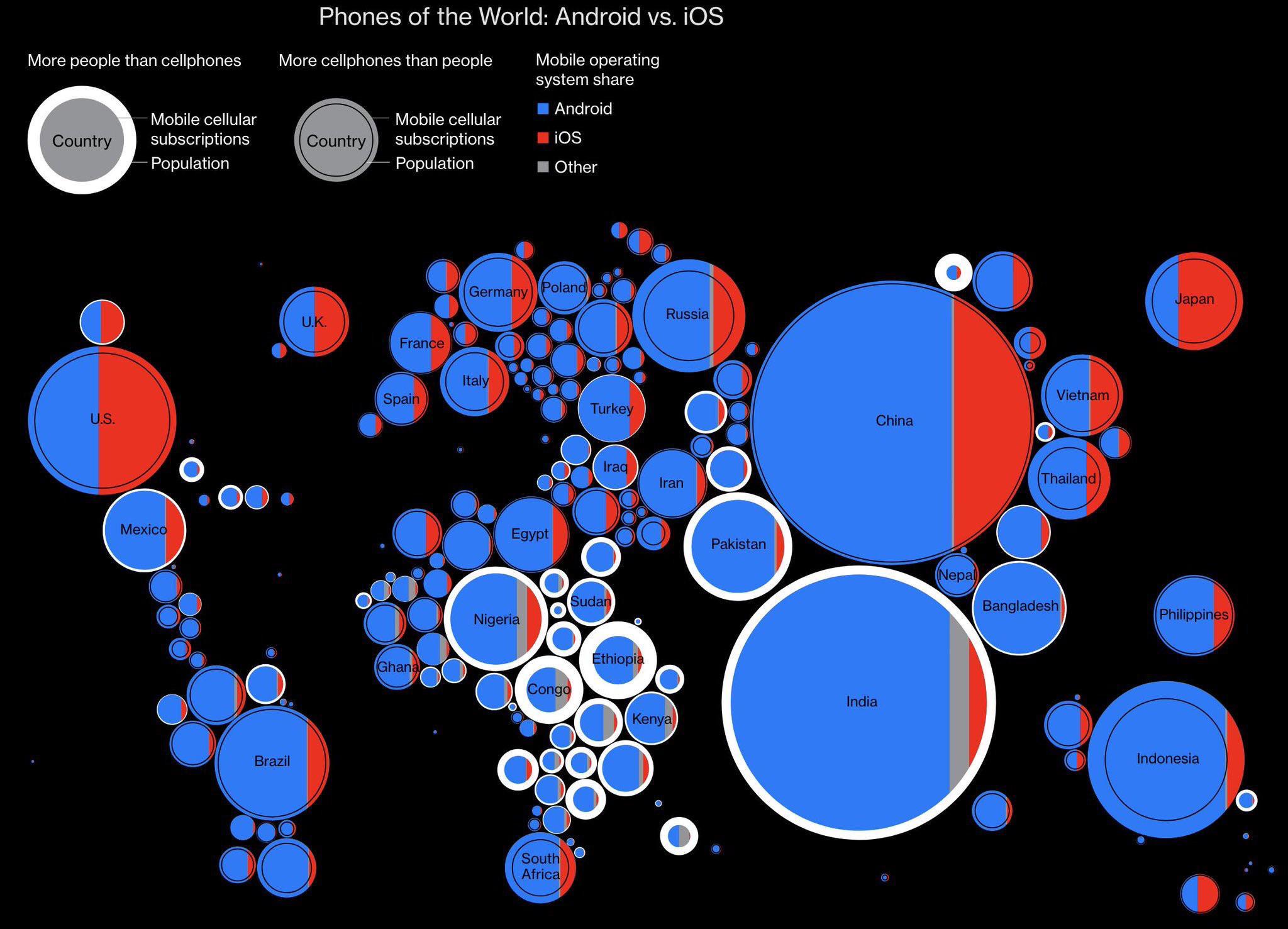

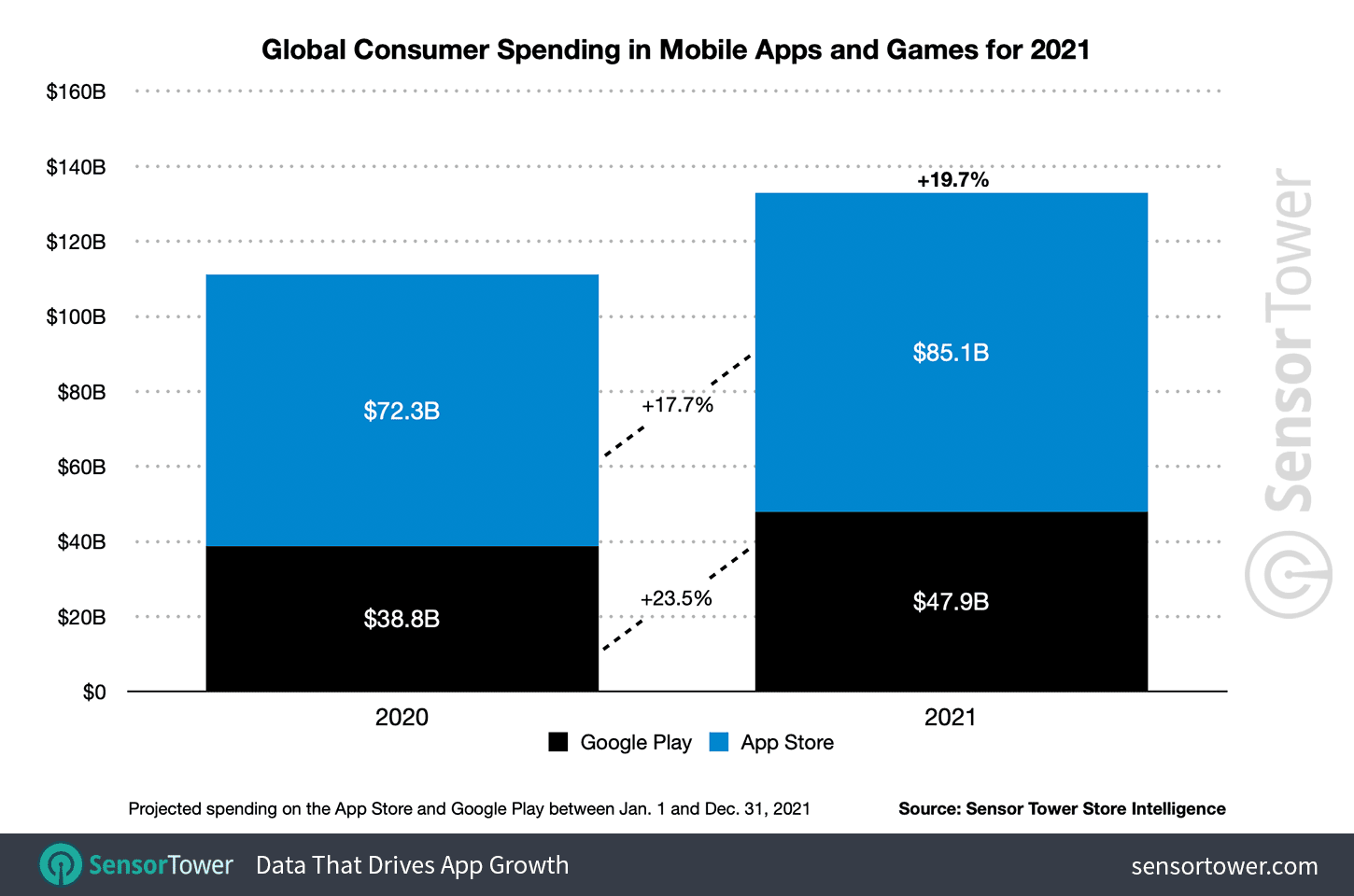

Revenue

---

Implementierung

Switch.adaptive(...) // Switch/CupertinoSwitch

Platform.isIOS
  ? Container()
  : FloatingActionButton()

👍 kapseln in MyWidget.adaptive() 👍

---

Navigation

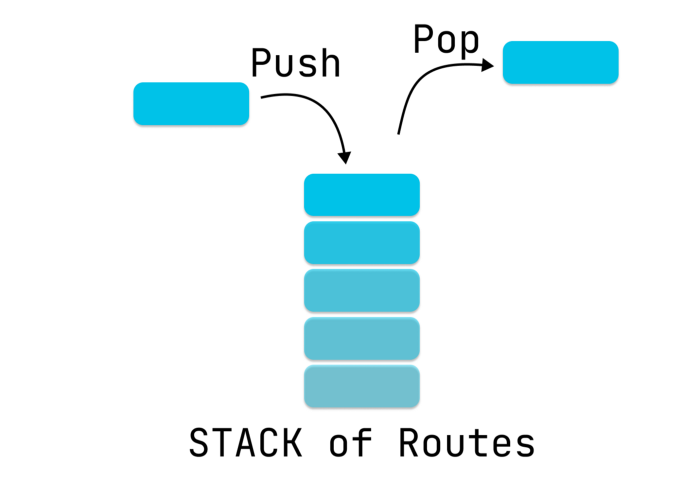

Top ist sichtbar

---

Simple Routing

Navigator.of(context).push(
  MaterialPageRoute(
  builder: (context) =>
      OtherPage(data),
  ),
);

---

Named Routes

class OtherPage extends StatelessWidget {
  static const route = '/other-page';

  @override
  Widget build(BuildContext context) {
    var data = ModalRoute
        .of(context)
        ?.settings
        .arguments as Data;

MaterialApp(
  // home: const CategoriesPage(),
  routes: {
    '/': (context) => Home(),
    OtherPage.route: (context) => OtherPage(),
  },
  onUnknownRoute: (settings) {
    return MaterialPageRoute(builder: (context) => ErrorPage());
  },

Navigator.of(context).pushNamed(
    OtherPage.route, arguments: arguments,);

---

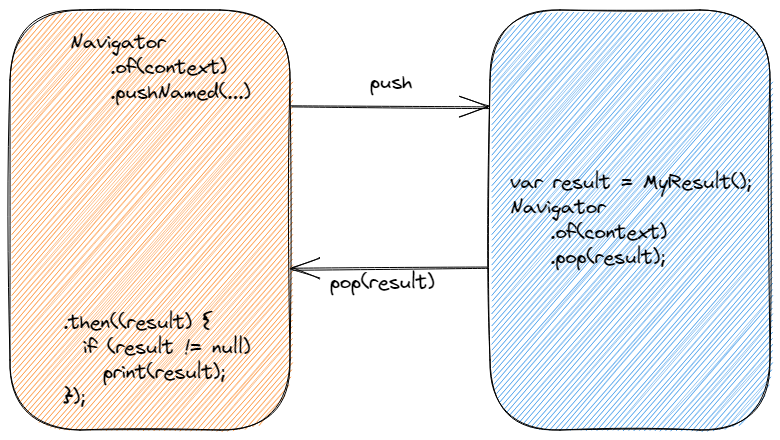

Returning

---

Tabs

static const _pages = [
  PageA(),
  PageB(),
];

int _selectedPageIndex = 0;

void _selectPage(int index) {
  setState(() => _selectedPageIndex = index);
}

Widget build(BuildContext context) {
  return Scaffold(
    body: _pages[_selectedPageIndex],

    bottomNavigationBar: BottomNavigationBar(
      onTap: _selectPage,
      currentIndex: _selectedPageIndex,
      items: const [
        BottomNavigationBarItem(icon: Icon(Icons.category)),
        BottomNavigationBarItem(icon: Icon(Icons.star)),],),

---

State again

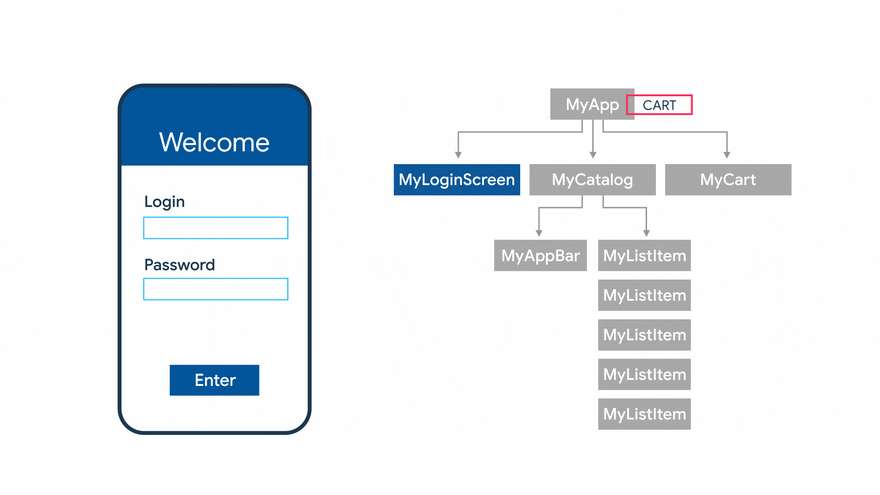

State forwarding ⟹ Kompletter Rebuild

---

$$UI = f(state)$$

---

Provider

class DataProvider with ChangeNotifier {
  final items = <Data>[ ... ];

  void addItem(Data data) {
    ...
    notifyListeners();
  }

  Data findById( ... ) { ... }
}

@override
Widget build(BuildContext context) {
  return ChangeNotifierProvider(
    create: (context) => DataProvider(),
    child: MaterialApp( ... )

@override
Widget build(BuildContext context) {
  final dataProvider = Provider.of<DataProvider>(context, listen: true);
  final data = dataProvider.items;

---

Advanced

ListView/GridView recyclen Elemente
bzw wenn builder keinen Konstruktor aufruft

ChangeNotifierProvider.value(
  value: data,
  child: ...,

Feingranularer

Widget build(BuildContext context) {
  return Consumer<Data>(
    builder: (context, data, child) => FooWidget(foo: data, child: child),
    child: NotChanging(), //---^ not rebuilt
  );
}
