solid

SOLID

Motivation

The more things change, the more they break
Anforderungen ändern sich ⟹ Code ändert sich

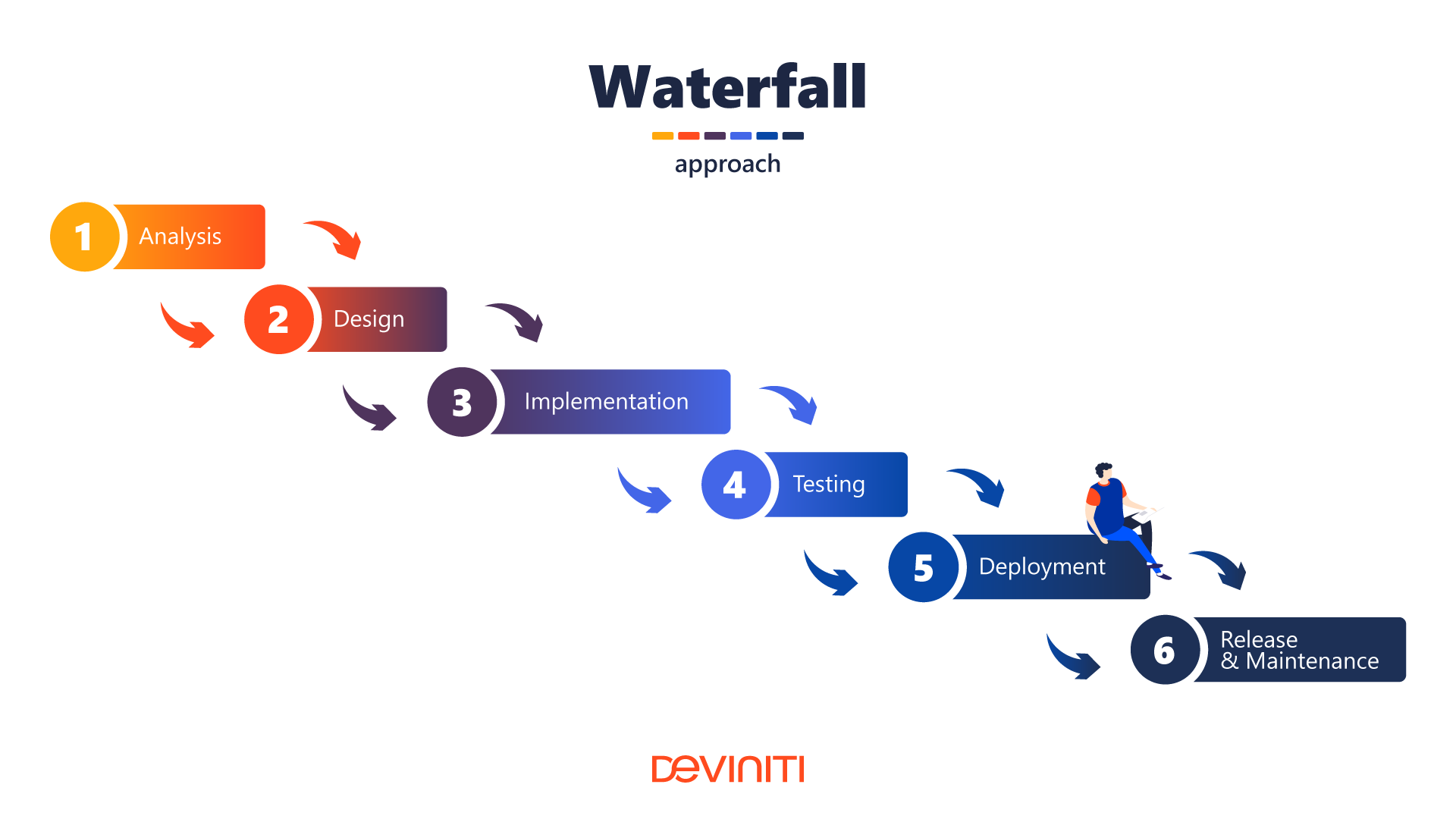

Waterfall Model

Agile

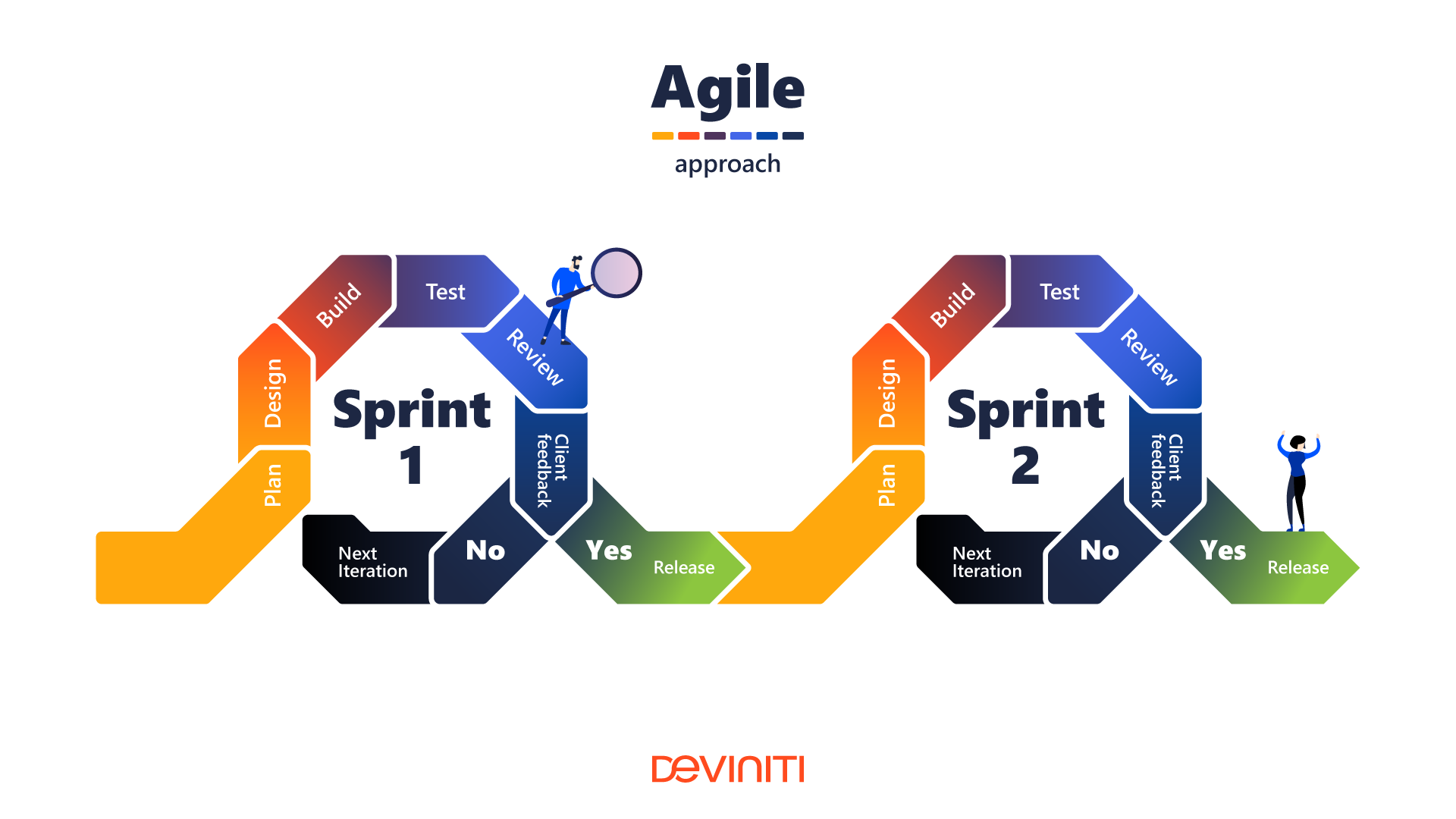

Agile Model

Ziel

ETC - easier to change

Clean Code: Code leichter lesbar ⟹ ETC
DRY - Don't repeat yourself: eine Änderung ⟹ ETC
Orthogonalität: Keine Codeverflechtungen ⟹ ETC; z.B. Datenbank wird von MySQL auf PostgreSQL portiert, GUI bleibt gleich

Namen

Principle of least Surprise

Variablen, Funktionen, Klassen sinnvoll benannt

Name > Typ

Keine Abkürzungen, Klarheit > Kürze

❌ int x = 5;
✅ var age = 5;

❌ List<Student> list = ...;
✅ var students = ...;

❌ bool f = true;
✅ var isActive = true;

Funktionen

Funktion macht nur eine Sache

Viele kurze Funktionen (< 20 lines)

< 4 Parameter

ähnliche Parameter in Objekte zusammenfassen

public void processOrder(Order order) {
  // validate the order
  code
  // save to database
  code
  // send confirmation mail
  code
} ❌

public void processOrder(Order order) {
  validate(order);
  save(order);
  sendConfirmationMail(order.customer);
} ✅

Formatting

Konsistent

Leerzeilen zur Unterteilung

Linter

public int sum(int a, int b) { return a + b; } ❌

public int sum(int a, int b) {
  return a + b;
} ✅

Duplication

Duplication vermeiden

Redundanz

Single source of truth

if(user.getAge() > 18) { ... }
...
if(customer.getAge() > 18) { ... }
...  ❌

boolean isAdult(Person person) {
    return person.getAge() > 18;
} ✅

class Person {

  public boolean isAdult() {
      return age > 18;
  }
} ✅

Lesbarkeit

Code sollte eine Geschichte erzählen

Don't try to be clever

Simple control flows

nums = [i for i in range(100) if not i%2 and i%3] ❌

nums = []
for i in range(100):
    if i % 2 == 0 and i % 3 != 0:
        nums.append(i) ✅

Kommentare

Unfähigkeit, Gedanken in Code zu fassen

Warum?

Müssen gewartet werden

// session-id ❌
int sessionId = 0;

// expiry date ❌
Date expiry = new Date();

// if during work hours ❌
if (currentTime.hours >= 9 && currentTime.hours <= 17) { ... }

// Matches a Dutch zipcode, eg, '1974 XA' or '4844RA' ✅
Pattern DUTCH_ZIPCODE = Pattern.compile("[1-9][0-9]{3} ?[A-Z]{2}");

var duringWorkHours = currentTime.hours >= 9 && currentTime.hours <= 17; ✅
if (duringWorkHours) { ... }

Komplexe Zusammenhänge

var resultCode = ...;
var isSucess = resultCode == 200;
var isTemporaryError = resultCode == 503 || resultCode == 504;

// Sometime we receive a temporary error.
// However, in all cases which were researched, results were successfully stored.
// Because of this we will return true in that case.
return (isSucess || isTemporaryError); ✅

// Don't rewrite this to try-with-resources because that will
// auto-close the socket. The socket is needed every 15 minutes so the
// error might not show directly but this will break the application
try {
    ... open a socket
} catch (IOException e) {
    ... handle error
} ✅

Testbarkeit

Automatisierte Tests

Nicht nur happy path

Testqualität >> Codequalität

SOLID

Guidelines, keine Regeln

"Uncle Bob" Robert C. Martin

Single responsibility principle
Open closed Principle
Liskov substitution principle
Interface segregation principle
Dependency inversion principle

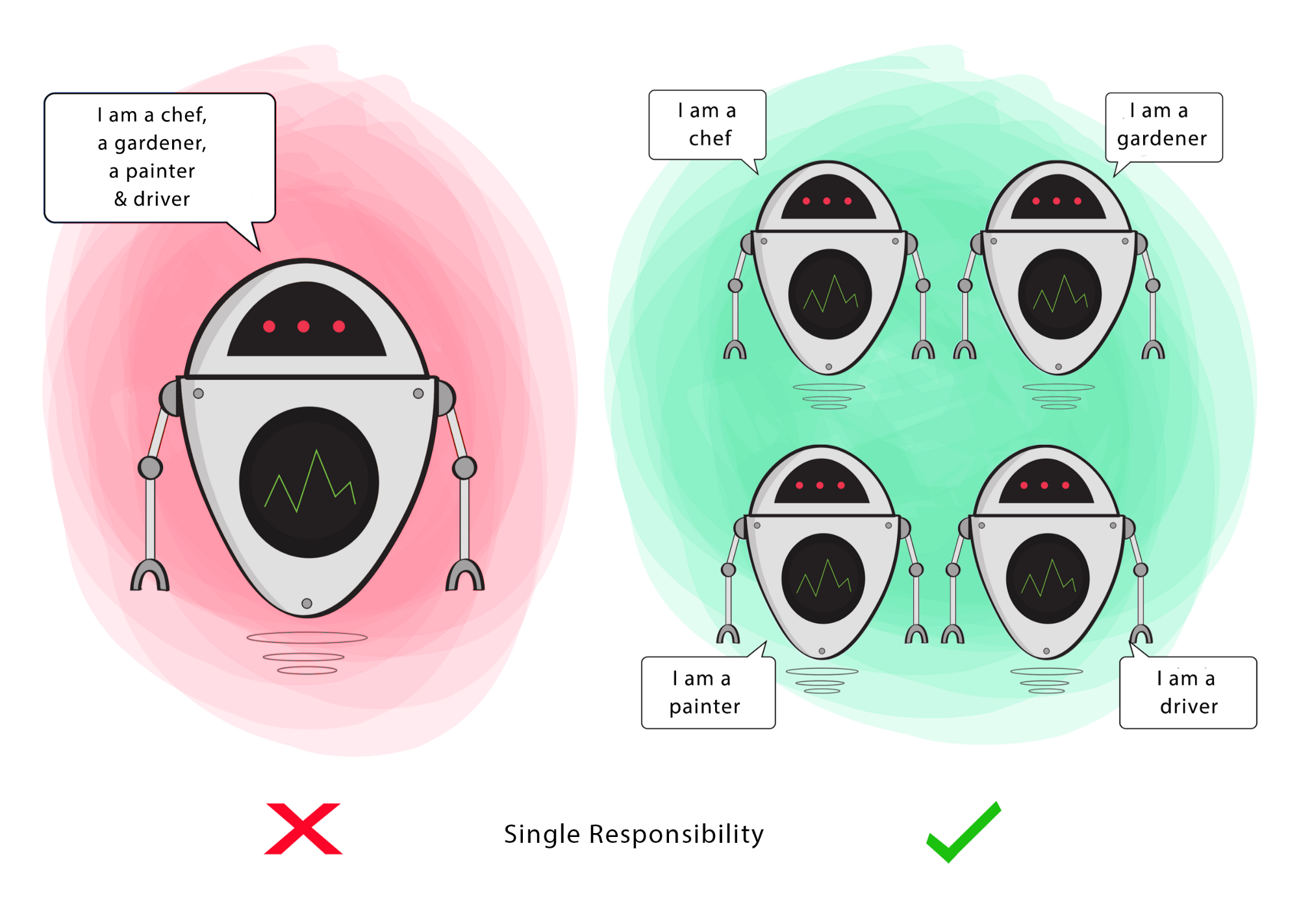

SRP - Single responsibility principle

Edsger W. Dijkstra - Seperation of concerns

Gather together the things that change for the same reasons. Separate things that change for different reasons.

public class Employee {

    public Money calculatePay()
    public void save()
    public String reportHours()
}

Buchhaltung verlangt Änderung ⟹ Recompile

DBA verlangt Änderung ⟹ Recompile

HR verlangt Änderung ⟹ Recompile

class Book {

    public String getTitle()
    public String getAuthor()
    public Page nextPage()
    public void printCurrentPage()
    public void save()
}

class Book {

     public String getTitle()
     public String getAuthor()
     public Page nextPage()
     public Page getCurrentPage()
}

interface Printer {

    void printPage(Page page);
}

class PlainTextPrinter implements Printer {

    public void printPage(Page page) {}
}

class HtmlPrinter implements Printer {

    public void printPage(Page page)
}

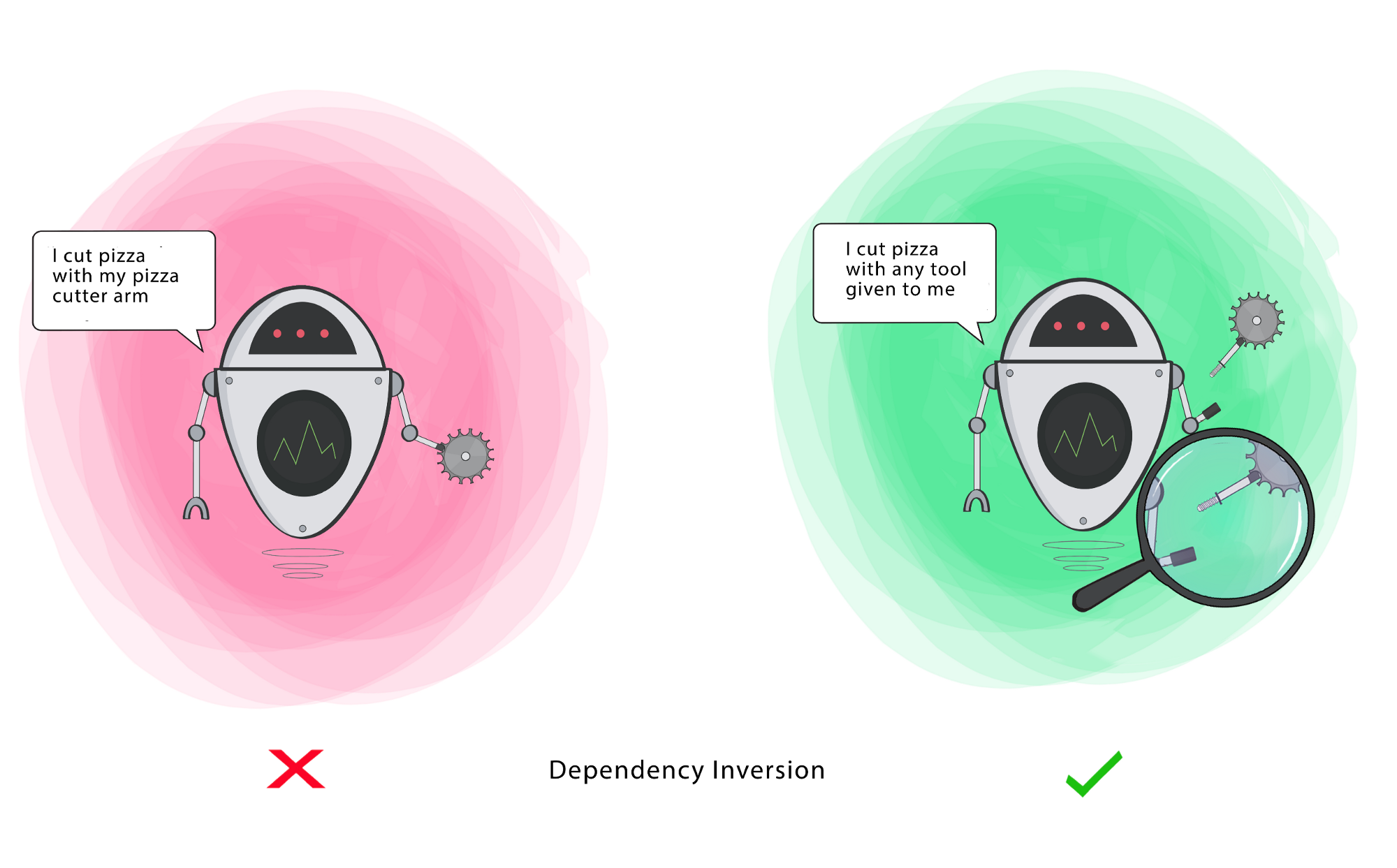

Dependency Inversion Principle

High-level modules should not depend on low-level modules. Both should depend on the abstraction.

Abstractions should not depend on details. Details should depend on abstractions.

module-model

Mit DIP

module-model

Klassen haben nur Referenzen auf Interfaces

Detail-Klassen implementieren diese Interfaces

Wie kommt das Objekt in die Klasse?

Dependency Injection

public class TextEditor {
    private SpellChecker checker;

    public TextEditor() {
        this.checker = new EnglishSpellChecker();
    }
}

"new is glue"

public class TextEditor {
    private SpellChecker checker;

    public TextEditor(SpellChecker checker) {
        this.checker = checker;
    }
}

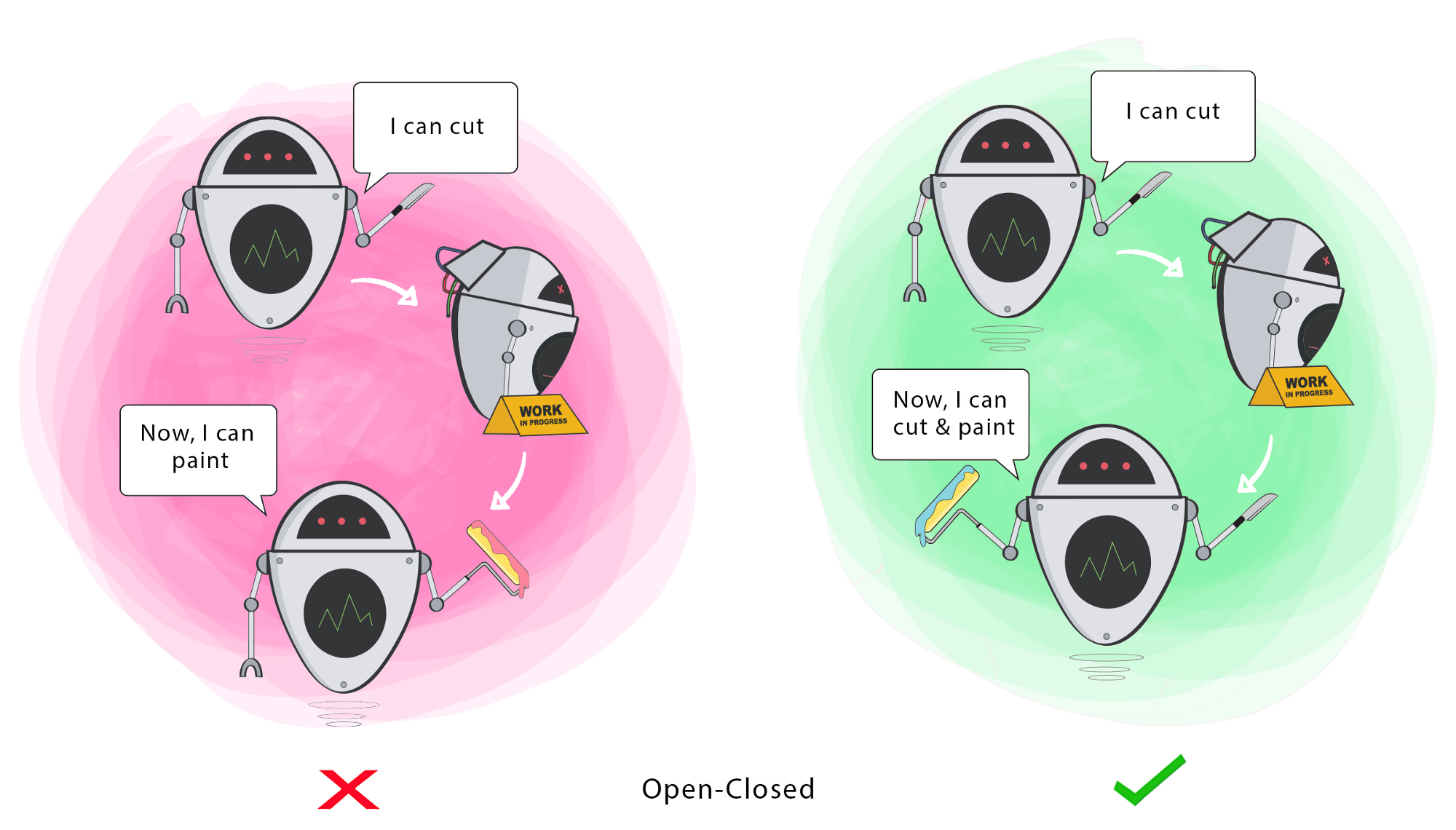

Open closed principle

A Module should be open for extension but closed for modification.

Code ist so zu schreiben, dass neue Features eingefügt werden können, ohne den bestehenden Code zu verändern.

Extension? ⟹ `extends`!

animal>eagle-uml

import Eagle;

class App {

    public static void main(String[] args) {
        Eagle eagle = new Eagle();
        eagle.makeSound();
        eagle.fly();
    }
}

makeSound returnt String ⟹ 🤔

Vererbung

+

DRY - Code existiert nur einmal
Polymorphie

class Derived extends Super {

    public int foo() {
        return getX() + super.foo();
    }
}

Erzeugt Abhängigkeit ⟹ nicht ETC

++

DRY - Auslagern in eigene Klasse (SRP)
Polymorphie - Interfaces

public interface CalculatorOperation { }

public class Addition implements CalculatorOperation{
    private double left;
    private double right;
    private double result;

    ...
}

public void calculate(CalculatorOperation operation) {
    if (operation instanceof Addition addition) {
        var result = addition.getLeft() + addition.getRight();
        addition.setResult(result);
    } else if (operation instanceof Subtraction subtraction) {
        var result = subtraction.getLeft() - subtraction.getRight();
        subtraction.setResult(result);
    }
}

Customer will Multiplication
⟹ Änderung notwendig ⟹ nicht OCP

public interface CalculatorOperation {

    double perform();
}

public class Addition implements CalculatorOperation{
    private double left;
    private double right;

	@Override
    public double perform() {
        return left + right;
    }
}

public void calculate(CalculatorOperation operation) {
    var result = operation.perform();
}

OCP ✔️

`sealed`

sealed class Animal permits Dog, Cat, Alien { }

class Fish extends Animal { } 🚫

final class Dog extends Animal { }

sealed class Cat extends Animal permits Tiger { }

final class Tiger extends Cat { }

non-sealed class Alien extends Animal { }

var sound = switch(animal) {
	case Dog dog -> dog.bark();
	case Tiger tiger -> tiger.roar();
	case Alien alien -> alien.sound();
	// no default needed
}

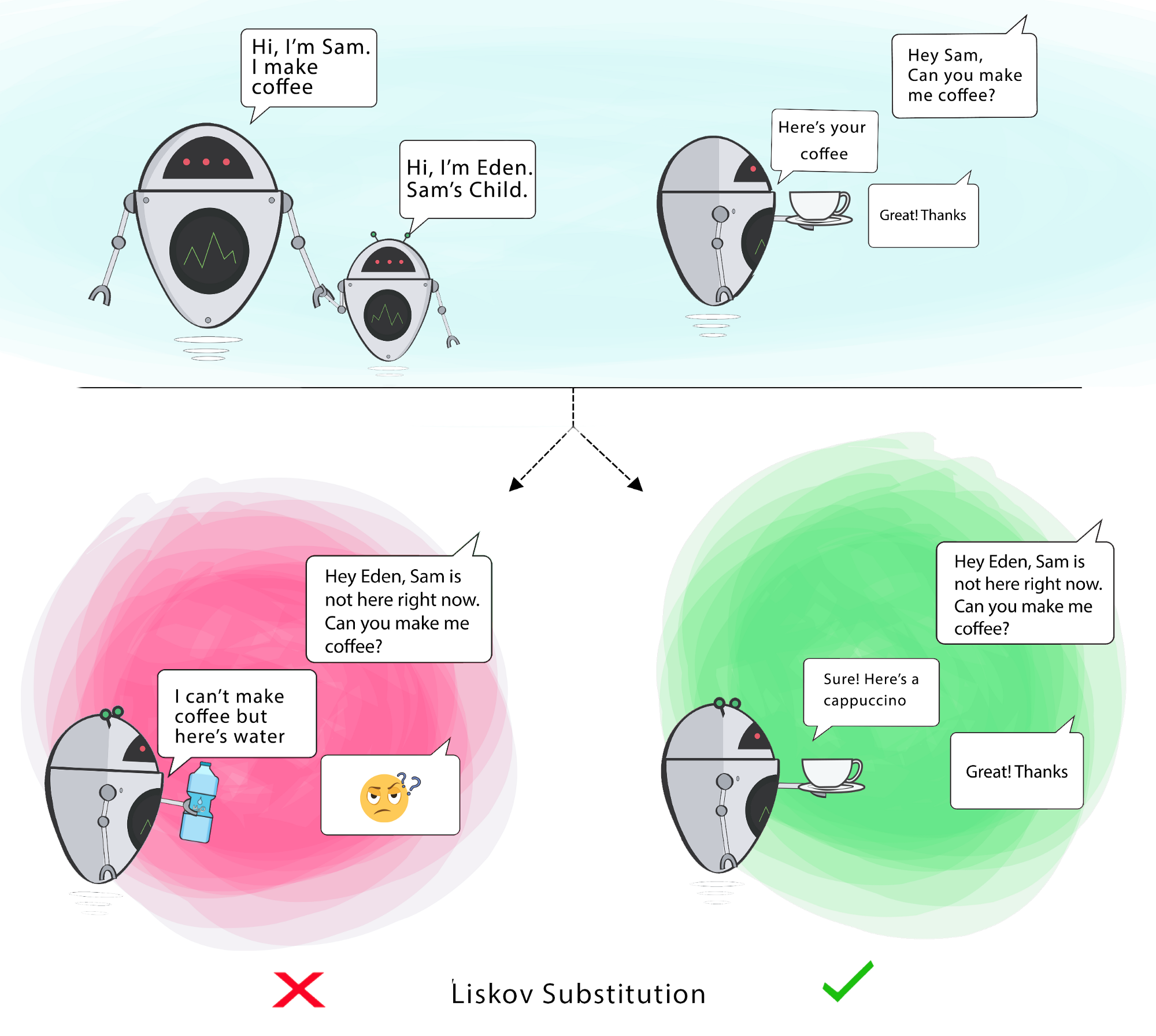

Liskov substitution principle

Sei q(x) eine beweisbare Eigenschaft von Objekten x des Typs T. Dann soll q(y) für Objekte y des Typs S wahr sein, wobei S ein Untertyp von T ist

A program that uses an interface must not be confused by an implementation of that interface.

normalerweise ✔️

Verletzung: teilweises Implementieren eines interfaces

public class UserAdder {

    public void addUser(Collection<User> users, User user) {
        users.add(user);
    }
}

SRP ✔️

var adder = new UserAdder();
var users = List.of(new User("Albert"), new User("Bernd"));
adder.addUser(users, new User("Christina"));

Exception in thread "main" java.lang.UnsupportedOperationException

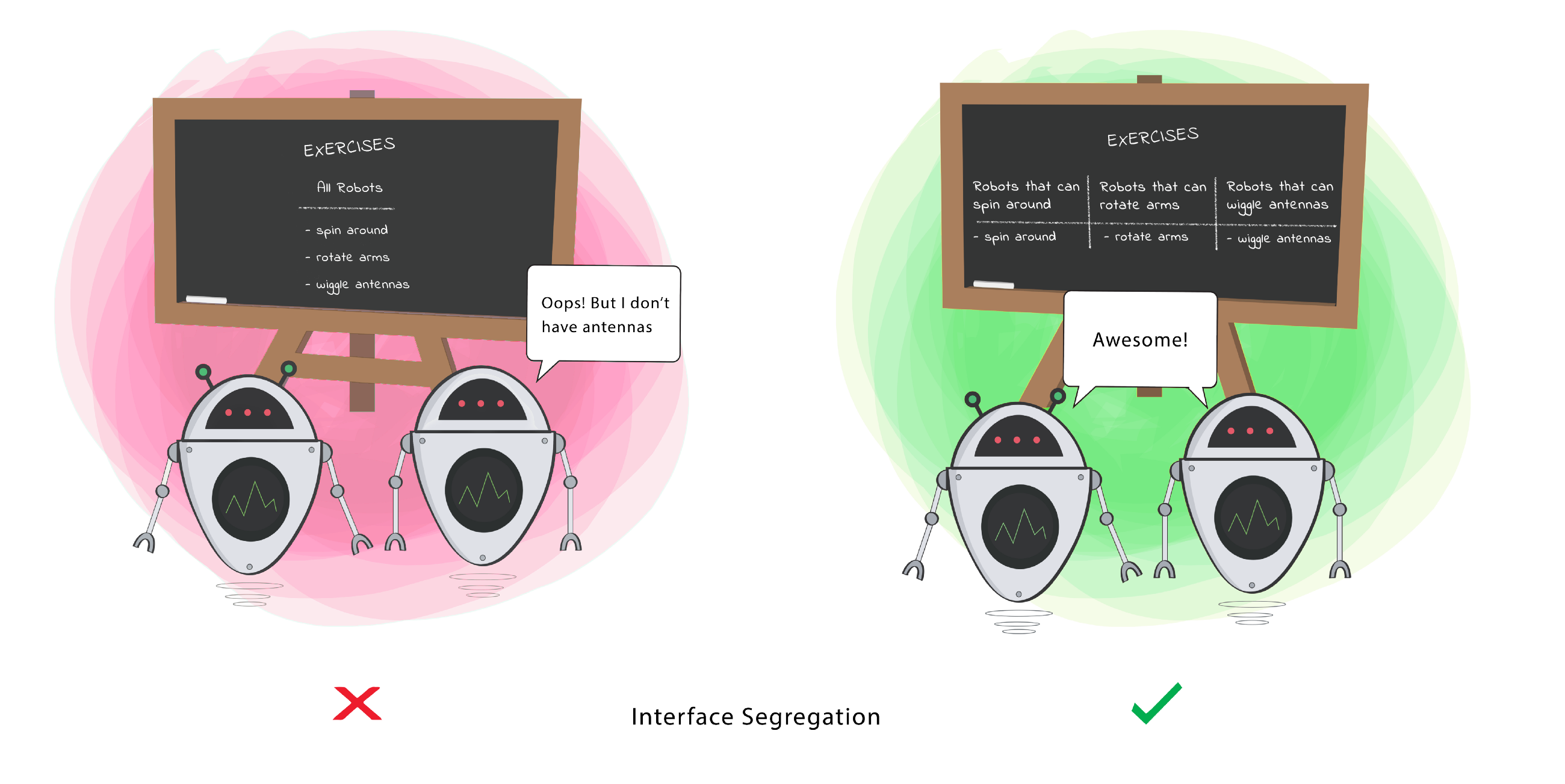

Interface segregation principle

Keep interfaces small so that users don’t end up depending on things they don’t need.

public interface FileStorer {

    byte[] load(Path path);
    void delete(Path path);
    void save(Path path, Stream<String> lines);
    boolean exists(Path path);
    void createDirectory(Path path);
    Stream<Path> getSubDirectories(Path path);
    Stream<Path> getFiles(Path path);
}

Aus bestehendem interface wird für jede Client-Rolle ein neues interface abgesondert

RoleInterfaces

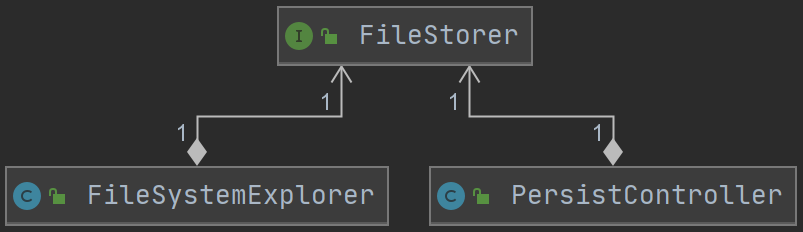

without-isp

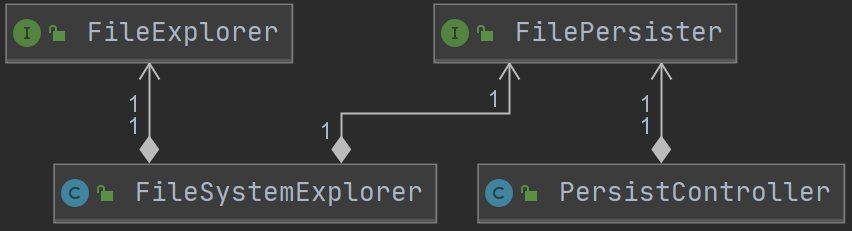

with-isp

SRP vs ISP

SRP trifft Aussagen über die Implementierung

ISP trifft Aussagen über Interfaces

SRP Verletzung
neue Klassen
neue Rollen
ISP

Zusammenfassung

SRP - nur eine Sache machen

Klassen extenden keine Klassen

Composition > Inheritance

alte Funktionalität nicht beeinflussen

LSP - Interfaces vollständig implementieren

ISP - SRP auch für Interface

alle Typen Interfaces (außer domain)

kein new (außer domain)

Testbarkeit ✔️

Ersetzbarkeit ✔️

Wiederverwendbarkeit ✔️
